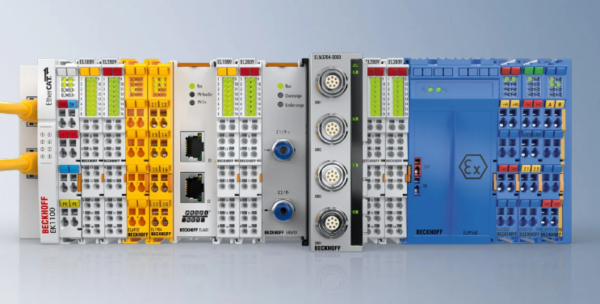

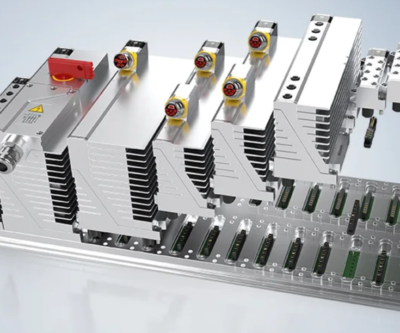

Beckhoff đã triển khai các hệ thống tự động hóa mở dựa trên công nghệ PC Control trong hơn 40 năm. Phạm vi sản phẩm bao gồm PC công nghiệp, các bộ phận I/O và fieldbus, công nghệ truyền động, phần mềm tự động hóa, tự động hóa không cần tủ điều khiển và phần cứng cho thị giác máy. Các sản phẩm có thể được sử dụng như các bộ phận riêng biệt hoặc được tích hợp vào một hệ thống điều khiển hoàn chỉnh và liền mạch, sẵn có cho mọi ngành công nghiệp. Triết lý Công nghệ tự động hóa mới của Beckhoff đại diện cho các giải pháp tự động hóa và điều khiển mở, phổ quát được sử dụng trên toàn thế giới trong nhiều ứng dụng khác nhau, từ máy công cụ điều khiển bằng CNC và tua-bin gió đến tự động hóa tòa nhà thông minh.
| Panel PC | 2, 4, 6, 8 | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise | 12″ (4:3), 12.1″, 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | built-in device | IP65 (front side) | yes | regular delivery | yes | Multi-touch | 2 PCIe module slots | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes, with C9900-F94x | CFast card | ||||||
| Panel PC | 2, 4, 6, 8 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise, Win Server 2019 | 12″ (4:3), 12.1″, 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | built-in device | IP65 (front side) | yes | regular delivery | Multi-touch | 2 PCIe module slots | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | yes, with C9900-F94x | CFast card | ||||||
| Panel PC | 2, 4 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | yes | Win 7, Win Embedded Standard 7, Win 10 IoT Enterprise, Win Server 2016 | 12″ (4:3), 12.1″, 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | built-in device | IP65 (front side) | yes | regular delivery | Multi-touch | 2 PCIe module slots | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | yes, with C9900-F94x | CFast card | ||||||
| Panel PC | 1 | ARM Cortex™-A8 | P30 | yes | Win Embedded Compact 7 | 7″, 12″ (4:3), 12.1″, 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | built-in device | IP65 (front side) | no | regular delivery | Dual-touch | Ethernet, USB, RS232 | 1-second UPS | yes, with C9900-F94x | MicroSD | |||||||||
| Panel PC | 2, 4 | Intel Atom® | P40, P50 | no | Win 10 IoT Enterprise | 12″ (4:3), 12.1″, 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | built-in device | IP65 (front side) | no | regular delivery | Multi-touch | 1 PCIe module slot | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | yes | yes, with C9900-F94x | CFast card | |||||||
| Panel PC | 1, 2, 4 | Intel Atom® | P40, P50 | yes | Win 7, Win Embedded Standard 7, Win Embedded Compact 7, Win 10 IoT Enterprise | 12″ (4:3), 12.1″, 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | built-in device | IP65 (front side) | no | regular delivery | Multi-touch | 1 PCIe module slot | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | yes, with C9900-F94x | CFast card | ||||||||
| Panel PC | 2, 4, 6, 8 | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise | 12″ (4:3), 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | yes | regular delivery | yes | Multi-touch | 1 PCIe module slot | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | CFast card | |||||||
| Panel PC | 2, 4, 6, 8 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise, Win Server 2019 | 12″ (4:3), 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | yes | regular delivery | Multi-touch | 1 PCIe module slot | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | |||||||
| Panel PC | 2, 4 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | yes | Win 7, Win Embedded Standard 7, Win 10 IoT Enterprise, Win Server 2016 | 12″ (4:3), 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | yes | regular delivery | Multi-touch | 1 PCIe module slot | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | |||||||
| Panel PC | 2, 4, 6, 8 | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise | 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | yes | regular delivery | yes | Multi-touch | 1 PCIe module slot | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | CFast card | |||||||
| Panel PC | 2, 4, 6, 8 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise, Win Server 2019 | 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | yes | regular delivery | Multi-touch | 1 PCIe module slot | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | |||||||
| Panel PC | 2, 4 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | yes | Win 7, Win Embedded Standard 7, Win 10 IoT Enterprise, Win Server 2016 | 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | yes | regular delivery | Multi-touch | 1 PCIe module slot | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | |||||||
| Panel PC | 2, 4 | Intel Atom® | P40, P50 | no | Win 10 IoT Enterprise | 12″ (4:3), 12.1″, 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | yes | regular delivery | Multi-touch | 1 PCIe module slot | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | yes | CFast card | ||||||||
| Panel PC | 1, 2, 4 | Intel Atom® | P40, P50 | yes | Win 7, Win Embedded Standard 7, Win Embedded Compact 7, Win 10 IoT Enterprise | 12″ (4:3), 12.1″, 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | yes | regular delivery | Multi-touch | 1 PCIe module slot | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | CFast card | |||||||||
| Panel PC | 2, 4 | Intel Atom® | P40, P50 | no | Win 10 IoT Enterprise | 15″ (4:3), 15.6″, 18.5″, 19″ (5:4), 21.5″, 24″ | mounting arm device | IP65 | no | regular delivery | Multi-touch | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | CFast card | ||||||||||
| Panel PC | 1 | ARM Cortex™-A8 | P30 | yes | Win Embedded Compact 7 | 7″ | built-in device | IP54 (front side) | no | regular delivery | Single-touch | Ethernet, USB, RS232 | 1-second UPS | MicroSD | ||||||||||
| Panel PC | 1 | ARM Cortex™-A8 | P30 | yes | Win Embedded Compact 7 | 10.1″ | built-in device | IP54 (front side) | no | regular delivery | Single-touch | Ethernet, USB, RS232 | 1-second UPS | MicroSD | ||||||||||
| Panel PC | 2, 4 | Intel Atom® | P40, P50 | no | Win 10 IoT Enterprise | 7″ | built-in device | IP54 (front side) | no | regular delivery | Single-touch | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option, 1-second UPS | yes | CFast card | |||||||||
| Panel PC | 1, 2, 4 | Intel Atom® | P40, P50 | yes | Win 7, Win Embedded Standard 7, Win Embedded Compact 7, Win 10 IoT Enterprise | 7″ | built-in device | IP54 (front side) | no | regular delivery | Single-touch | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option, 1-second UPS | CFast card | ||||||||||
| Panel PC | 2, 4 | Intel Atom® | P40, P50 | no | Win 10 IoT Enterprise | 10.1″ | built-in device | IP54 (front side) | no | regular delivery | Single-touch | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option, 1-second UPS | yes | CFast card | |||||||||
| Panel PC | 1, 2, 4 | Intel Atom® | P40, P50 | yes | Win 7, Win Embedded Standard 7, Win Embedded Compact 7, Win 10 IoT Enterprise | 10.1″ | built-in device | IP54 (front side) | no | regular delivery | Single-touch | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option, 1-second UPS | CFast card | ||||||||||
| Panel PC | 2, 4, 6, 8 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise | 12″ (4:3), 15″ (4:3), 19″ (5:4) | built-in device | IP65 (front side) | yes | regular delivery | yes | Single-touch | 2 PCIe module slots, 2 PCI/PCIe plug-in slots | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | CFast card | |||||||
| Panel PC | 2, 4, 6, 8 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise, Win Server 2019 | 12″ (4:3), 15″ (4:3), 19″ (5:4) | built-in device | IP65 (front side) | yes | regular delivery | Single-touch | 2 PCIe module slots, 2 PCI/PCIe plug-in slots | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | |||||||
| Panel PC | 2, 4 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | yes | Win 7, Win Embedded Standard 7, Win 10 IoT Enterprise, Win Server 2016 | 12″ (4:3), 15″ (4:3), 19″ (5:4), 24″ | built-in device | IP65 (front side) | yes | regular delivery | Single-touch | 2 PCIe module slots, 2 PCI/PCIe plug-in slots | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | |||||||
| Panel PC | 2, 4 | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 | P50, P60, P70, P80 | yes | Win 7, Win Embedded Standard 7, Win 10 IoT Enterprise, Win Server 2016 | 12″ (4:3), 15″ (4:3), 19″ (5:4) | built-in device | IP65 (front side) | yes | regular delivery | Single-touch | 6 or more PCI/PCIe plug-in slots | Ethernet, DVI, USB, RS232, RS422/RS485, Audio | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | |||||||
| Panel PC | 1 | ARM Cortex™-A8 | P30 | yes | Win Embedded Compact 7 | 5.7″ (4:3), 6.5″ (4:3), 12″ (4:3), 15″ (4:3), 19″ (5:4) | built-in device | IP65 (front side) | no | regular delivery | Single-touch | Ethernet, USB, RS232 | 1-second UPS | MicroSD | ||||||||||
| Panel PC | 2, 4 | Intel Atom® | P40, P50 | no | Win 10 IoT Enterprise | 5.7″ (4:3), 12″ (4:3), 15″ (4:3), 19″ (5:4) | built-in device | IP65 (front side) | no | regular delivery | Single-touch | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | yes | CFast card | |||||||||
| Panel PC | 1, 2, 4 | Intel Atom® | P40, P50 | yes | Win 7, Win Embedded Standard 7, Win Embedded Compact 7, Win 10 IoT Enterprise | 5.7″ (4:3), 12″ (4:3), 15″ (4:3), 19″ (5:4) | built-in device | IP65 (front side) | no | regular delivery | Single-touch | Ethernet, DVI, USB, RS232, RS422/RS485 | external battery as an option | CFast card | ||||||||||
| Panel PC | 2, 4, 6, 8 | Intel® Core™ i3/i5/i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise, Win Server 2019 | 12″ (4:3), 15″ (4:3), 19″ (5:4) | mounting arm device | IP65 | yes | regular delivery | yes | Single-touch | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | CFast card | ||||||||
| Panel PC | 2, 4, 6, 8 | Intel® Core™ i3/i5/i7 | P50, P60, P70, P80 | no | Win 10 IoT Enterprise, Win Server 2019 | 12″ (4:3), 15″ (4:3), 19″ (5:4) | mounting arm device | IP65 | yes | regular delivery | Single-touch | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | ||||||||
| Panel PC | 2, 4 | Intel® Core™ i3/i5/i7 | P50, P60, P70, P80 | yes | Win 7, Win Embedded Standard 7, Win 10 IoT Enterprise, Win Server 2016 | 12″ (4:3), 15″ (4:3), 19″ (5:4) | mounting arm device | IP65 | yes | regular delivery | Single-touch | Ethernet, USB, RS232, RS422/RS485 | external battery as an option | on-board SATA RAID 1 controller | yes | CFast card | ||||||||
| Panel PC | 2, 4 | Intel Atom® | P40, P50 | no | Win 10 IoT Enterprise | 12″ (4:3), 15″ (4:3), 19″ (5:4) | mounting arm device | IP65 | no | regular delivery | Single-touch | Ethernet, USB | external battery as an option | yes | CFast card | |||||||||
| Panel PC | 1 | Intel Atom® | P40 | yes | Win CE 6 | 6.5″ (4:3), 12″ (4:3), 15″ (4:3), 19″ (5:4) | mounting arm device | IP65 | no | service phase | Single-touch | Ethernet, USB | external battery as an option | CFast card | ||||||||||
| Panel PC | 1, 2, 4 | Intel Atom® | P40, P50 | yes | Win 7, Win Embedded Standard 7, Win Embedded Compact 7, Win 10 IoT Enterprise | 15″ (4:3), 19″ (5:4), 21.5″ | built-in device | IP65 (front side) | no | regular delivery | yes | Multi-touch | Ethernet, DVI, USB | CFast card | ||||||||||
| Panel PC | 1, 2, 4 | Intel Atom® | P40, P50 | yes | Win 7, Win Embedded Standard 7, Win Embedded Compact 7, Win 10 IoT Enterprise |
